Products
Misting Pumps
We offer a broad range of 1000-psi (70 bar) high pressure misting pumps. From our economical direct drive pump to our industrial units, all of our mist pumps are built with high quality components, following our 43 years experience in the high pressure pumps industry.
All of our pumps are designed and built with thermal and short circuit protection. All of our professional units will also include a low water safety switch preventing the unit from operating with insufficient water supply. These upgrades make our range of pumps the most protected and highest rated pumps on the market!
Our mist pumps utilize a low speed, 4-pole or 6-pole motor. This reduces the operating speed of the bare pump and reduces noise and vibration while maintaining the required pressure and flow. Most of our pumps are available in 115V or 230V.
We also offer a specialized integrated climate control (HT controller) system. The controller is accompanied with a remote sensor that automates operations based on programmable temperature and humidity settings. The pump is designed to suit all of our mist fans.
If you are looking for a custom solution, we build our mist pumps for a wide variety of applications that feature custom controls to suit your needs. Our custom series pumps can be built for voltages from 115V to 575V 3 Phase. Additional components, such as electric zone valves, drain valves, and safety switches are also available and these units can include the use of a variable frequency drive (VAR or VFD) for multi-zone applications.
High Pressure Misting Pump "Breezy"
These series of household high pressure pumps are the suitable solution with high quality and safety standard for all requirements to build professional misting systems with flow rates ranging from 0.5 up to 0.9 l/min with single phase electric motor.
High quality components like ceramic pistons, aluminum head, long lasting professional seals, assure smooth operation and a long-lasting reliability.
Our built-in digital timer offers full control of the efficiency of the misting system by direct adjustment of the frequency of mist spray increasing the advantages on water and energy consumption with savings up to 70% if compared to standard systems.
This pump is suitable for small and medium outdoor cooling systems thanks to the special programming of the built-in timer that allows you to set work and pause cycles in seconds.
Its automatic drain solenoid valve allows a perfect drain of the pipeline and assures optimal anti-drip system performaces.
QES electrical motors assure the full efficiency with lowest power consumption and low noise operation.
Pump type | Flow rate | Nozzles* | Volt |
---|---|---|---|
Breezy | lpm / gpm | min. / max. | V-Hz |
0.5/70 | 0.5 - 0.13 | 8 - 10 | 230-50 |
0.9/70 | 0.9 - 0.24 | 16 - 20 | 230-50 |
High Pressure Misting Pump "Arctic"
These series of professional high pressure pumps are the suitable solution with high quality and safety standard for all requirements to build professional mist cooling and humidification systems with flow rates ranging from 1 up to 6 l/min with single phase electric motor.
High quality components like ceramic pistons, brass head, long lasting professional seals, assure smooth operation and a long-lasting reliability.
Our built-in digital timer offers full control of the efficiency of the misting system by direct adjustment of the frequency of mist spray increasing the advantages on water and energy consumption with savings up to 70% if compared to standard systems.
This pump is suitable for small and medium humidification systems thanks to the special programming of the built-in timer that allows you to set work cycles in seconds and pause cycles in minutes.
A built-in humidity and temperature controller grants a complete control on environment conditions and a quick and simple installation of humidification systems.
QES electrical motors assure the full efficiency with lowest power consumption and low noise operation.
Pump type | Flow rate | Nozzles* | Volt |
---|---|---|---|
ARCTIC | lpm / gpm | min. / max. | V-Hz |
1/70 | 1 - 0.26 | 8 - 12 | 230-50 or 120-60 |
2/70 | 2 - 0.53 | 15 - 25 | 230-50 or 120-60 |
3/70 | 3 - 0.78 | 25 - 40 | 230-50 or 120-60 |
4/70 | 4 - 1.06 | 40 - 50 | 230-50 or 120-60 |
6/70 | 6 - 1.59 | 50 - 75 | 230-50 or 120-60 |
* 0.008" Nozzles (0.20 mm)

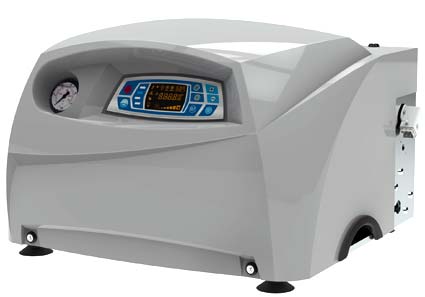

High Pressure Misting Pump "Polaris"
These series of professional high pressure pumps are the suitable solution with high quality and safety standard for all requirements to build professional mist cooling and humidification systems with flow rates ranging from 1 up to 6 l/min with single phase electric motor.
High quality components like ceramic pistons, brass head, long lasting professional seals, assure smooth operation and a long-lasting reliability.
Our built-in digital timer offers full control of the efficiency of the misting system by direct adjustment of the frequency of mist spray increasing the advantages on water and energy consumption with savings up to 70% if compared to standard systems.
This pump is suitable for small and medium humidification systems thanks to the special programming of the built-in timer that allows you to set work cycles in seconds and pause cycles in minutes.
A built-in humidity and temperature controller grants a complete control on environment conditions and a quick and simple installation of humidification systems. Internal drain system BPS avoids to waste water during drain.
System Safety Control shuts down the pump in the event of the pressure
dropping below 40 bar preventing flooding caused by broken tubing. It also
prevents pump from dry running. A reliable solution for 24H safe operating systems
QES electrical motors assure the full efficiency with lowest power consumption and low noise operation.
Pump type | Flow rate | Nozzles* | Volt |
---|---|---|---|
POLARIS | lpm / gpm | min. / max. | V-Hz |
1/70 | 1 - 0.26 | 8 - 12 | 230-50 or 120-60 |
2 /70 | 2 - 0.53 | 15 - 25 | 230-50 or 120-60 |
3/70 | 3 - 0.78 | 25 - 40 | 230-50 or 120-60 |
4/70 | 4 - 1.06 | 40 - 50 | 230-50 or 120-60 |
6/70 | 6 - 1.59 | 50 - 75 | 230-50 or 120-60 |
* 0.008" Nozzles (0.20 mm)
High Pressure Misting Pump "Premium"
These professional high pressure pumps offer the best solution for small and medium fogging systems with flow rates from 0,6 up to 6 liters/min. driven by single-phase motors. High quality components ensurealong lasting operation. PremiumSeries are designed to satisfy all requirements in small and economical misting systems, with same performances and quality standards of a heavy-duty professional high pressure pump.
Available as "STANDARD", "PLUS" (with automatic drain) and TIME" (with digital timer) versions.
Pump type | Flow rate | Nozzles* | Volt |
---|---|---|---|
PREMIUM | lpm / gpm | min. / max. | V-Hz |
0.6/70 | 0.6 - 0.16 | 4 - 7 | 230-50 or 120-60 |
1/70 | 1 - 0.26 | 8 - 12 | 230-50 or 120-60 |
2 /70 | 2 - 0.53 | 15 - 25 | 230-50 or 120-60 |
3/70 | 3 - 0.78 | 25 - 40 | 230-50 or 120-60 |
4/70 | 4 - 1.06 | 40 - 50 | 230-50 or 120-60 |
6/70 | 6 - 1.59 | 50 - 75 | 230-50 or 120-60 |
* 0.008" Nozzles (0.20 mm)
High Pressure Misting Pump "Evolution"
These series of professional high pressure pumps are the suitable solution with high quality and safety standard for all requirements to build professional mist cooling and humidification systems with flow rates ranging from 1 up to 6 l/min with single phase electric motor.
High quality components like ceramic pistons, brass head, long lasting professional seals, assure smooth operation and a long-lasting reliability.
Our built-in digital timer offers full control of the efficiency of the misting system by direct adjustment of the frequency of mist spray increasing the advantages on water and energy consumption with savings up to 70% if compared to standard systems.
This pump is suitable for small and medium humidification systems thanks to the special programming of the built-in timer that allows you to set work cycles in seconds and pause cycles in minutes.
Internal drain system BPS avoids to waste water during drain.
QES electrical motors assure the full efficiency with lowest power consumption and low noise operation.
Available as "STANDARD", "TIME" (with digital timer) and "KEM" (suitable for chemicals) versions.
Pump type | Flow rate | Nozzles* | Volt |
---|---|---|---|
EVOLUTION | lpm / gpm | min. / max. | V-Hz |
1/70 | 1 - 0.26 | 8 - 12 | 230-50 or 120-60 |
2.5/70 | 2.5 - 0.66 | 20 - 30 | 230-50 or 120-60 |
3/70 | 3 - 0.78 | 30 - 40 | 230-50 or 120-60 |
4/70 | 4 - 1.06 | 40 - 50 | 230-50 or 120-60 |
6/70 | 6 - 1.59 | 50 - 75 | 230-50 or 120-60 |
* 0.008" Nozzles (0.20 mm)
High Pressure Misting Pump "Mistmatic"
These series of professional high pressure pumps are the suitable solution with high quality and safety standard for all requirements to build professional misting systems with flow rates ranging from 0.5 up to 5 liters/min (from 0.1 up to 1.3 US GPM) with single-phase electric motor. High quality components like ceramic pistons, brass head, long lasting professional seals, assure smooth operation and a long-lasting reliability.
Our built-in digital cyclic timer offers the full control of the fogging system by direct adjustment of the frequency of mist spray, increasing the advantages on water and energy consumption with savings up to 70% if compared to standard systems.
SSC safety features avoid accidental flooding by stopping the pump in case of leakages. BPS internal drain system avoids to waste water during drain cycles and prevents overheating. VAR-VFD variable speed motors allow to build independent misting lines/zones.
A built-in humidity and temperature controller (HT versions) grants a complete control on the environment conditions and a quick and simple installation of humidification systems.
Pump type | Flow rate | Nozzles* | Volt |
---|---|---|---|
MISTMATIC | lpm / gpm | min. / max. | V-Hz |
0.5-2.5/70 | 0.5 - 0.1 | 5 - 30 | 230-50/60 |
2.5-5/70 | 5 - 1.3 | 10 - 60 | 230-50/60 |
* 0.008" Nozzles (0.20 mm)
High Pressure Misting Pump "Professional"
These series of professional high pressure pumps are the suitable solution with high quality and safety standard for all requirements to build professional misting systems with flow rates ranging from 8 up to 12 liters/min. with single-phase or three-phase electric motor.
High quality components like ceramic pistons, brass head, long lasting professional seals, assure smooth operation and a long-lasting reliability.
Our built-in digital cyclic timer (”Time” versions only) offers the full control of the fogging system by direct adjustment of the frequence of mist spray, increasing the advantages on water and energy consumption with savings up to 70% if compared to standard systems.
BPS internal drain system avoids to waste water during drain cycles and prevents overheating.
Available as "STANDARD" and "TIME" (with digital timer) versions.
Pump type | Flow rate | Nozzles* | Volt |
---|---|---|---|
PROFESSIONAL | lpm / gpm | min. / max. | V-Hz |
8/70 | 8 - 2.11 | 75 - 100 | 230-50 or 400-50 |
10/70 | 10 - 2.64 | 100 - 125 | 230-50 or 400-50 |
12/70 | 12 - 3.17 | 125 - 150 | 400-50 |
* 0.008" Nozzles (0.20 mm)
High Pressure Misting Pump "NT-FOG"
These series of professional high pressure pumps are the suitable solution with high quality and safety standard for all requirements to build professional misting systems with flow rates ranging from 15 up to 43 liters/min (from 4 up to 11.4 US GPM), with three-phase electric motor.
High quality components like ceramic pistons, brass head, long lasting professional seals, assure smooth operation and a long-lasting reliability.
Our built-in digital cyclic timer offers the full control of the fogging system by direct adjustment of the frequency of mist spray, increasing the advantages on water and energy consumption with savings up to 70% if compared to standard systems.
SSC safety features avoid accidental flooding by stopping the pump in the event of leakages.
BPS internal drain system avoids to waste water during drain cycles and prevents overheating.
Variable speed motor allow to build independent misting lines/areas.
Available as "STANDARD" and "TIME" (with digital timer - up to 21 lpm) versions.
Pump type | Flow rate | Nozzles* | Volt |
---|---|---|---|
NT-FOG | lpm / gpm | min. / max. | V-Hz |
15/70 | 15 - 3.96 | 150 - 190 | 400-50 or 460-60 |
18/70 | 18 - 4.75 | 190 - 230 | 400-50 or 460-60 |
21/70 | 21 - 5.54 | 230 - 260 | 400-50 or 460-60 |
27/70 | 27 - 7.13 | 260 - 340 | 400-50 or 460-60 |
35/70 | 35 - 9.24 | 340 - 440 | 400-50 or 460-60 |
43/70 | 43 - 11.36 | 440 - 545 | 400-50 or 460-60 |
* 0.008" Nozzles (0.20 mm)
High Pressure Misting Pump "VAR"
These series of professional high pressure pumps are the suitable solution with high quality and safety standard for all requirements to build professional misting systems with flow rates ranging from 1 up to 18 liters/min (from 0.8 up to 4.7 US GPM) with three-phase electric motor.
High quality components like ceramic pistons, brass head, long lasting professional seals, assure smooth operation and a long-lasting reliability.
Our built-in digital cyclic timer offers the full control of the fogging system by direct adjustment of the frequency of mist spray, increasing the advantages on water and energy consumption with savings up to 70% if compared to standard systems.
SSC safety features avoid accidental flooding by stopping the pump in case of leakages.
BPS internal drain system avoids to waste water during drain cycles and prevents overheating. VAR-VFD variable speed motors allow to build independent misting lines/areas.
Available as "EVOLUTION TIME" (up to 5 lpm) and "NT-FOG" (up to 21 lpm) versions.
Pump type | Flow rate | Nozzles* | Volt |
---|---|---|---|
VAR | lpm / gpm | min. / max. | V-Hz |
1-10/70 | 1-10 - 0.8-2.6 | 12 - 125 | 400-50 or 400-60 |
1.5-15/70 | 1.5-15 - 1.2-3.9 | 18 - 190 | 400-50 or 400-60 |
2-18/70 | 2-18 - 1.3-4.7 | 23 - 230 | 400-50 or 400-60 |
* 0.008" Nozzles (0.20 mm)
